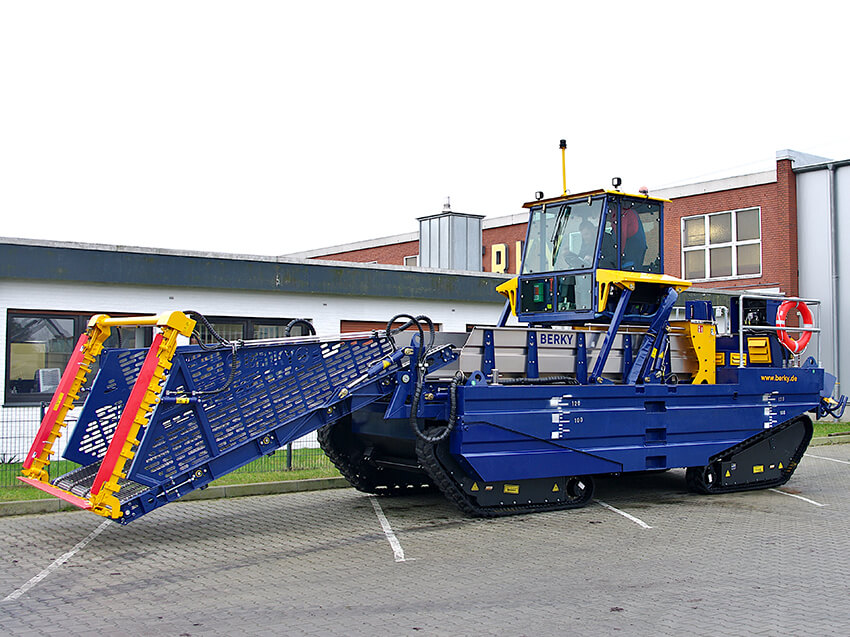

Berky Triton Amphi 550 auf ParkplatzBerky Triton Amphi 550 auf Parkplatz

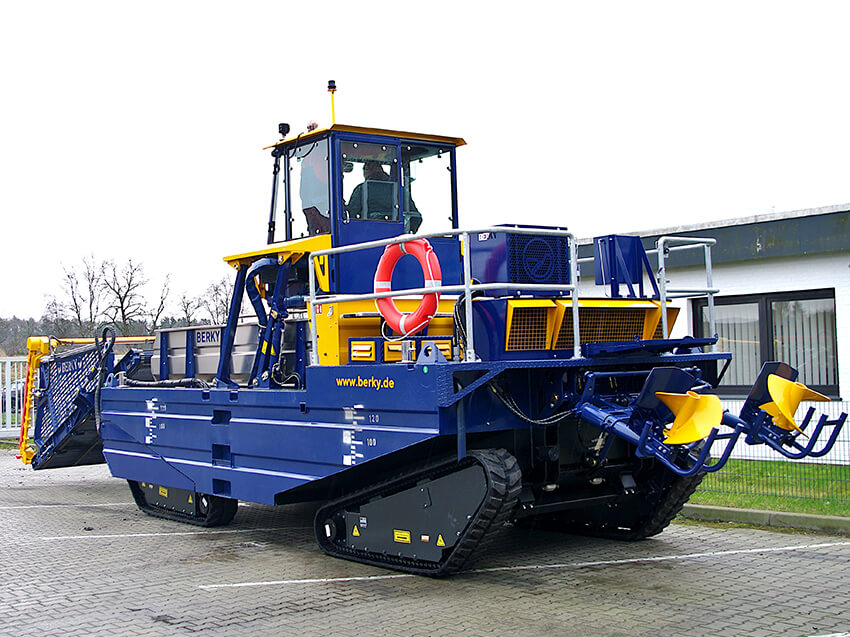

Berky Triton Amphi 550 auf Parkplatz RückseiteBerky Triton Amphi 550 auf Parkplatz Rückseite
Berky Triton Amphi 550 auf Parkplatz SeitenansichtBerky Triton Amphi 550 auf Parkplatz Seitenansicht

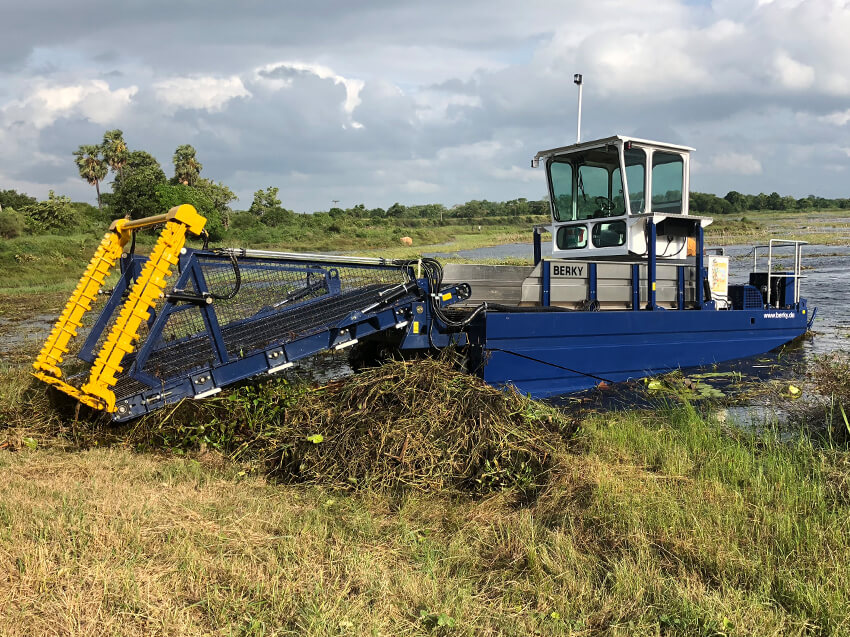

Berky Triton Amphi 550 im Einsatz am Ufer eines GewässersBerky Triton Amphi 550 im Einsatz am Ufer eines Gewässers
Berky Triton Amphi 550 auf GrasBerky Triton Amphi 550 auf Gras
Berky Triton Amphi 550 im Einsatz am bewachsenen GewässerBerky Triton Amphi 550 im Einsatz am bewachsenen Gewässer

Berky TRITON 550 Amphi

Amphibious Weed Harvester Type 6925

Our amphibious aquatic weed harvester-collection boat opens up further areas of application.
The amphibic weed harvester BERKY TRITON 550 AMPHI is the latest evolutionary stage of mow collection boats.

As an amphibious aquatic weed harvester with its additional chain drive, it is able to move independently from the low-loader to the body of water. The amphibious boat can be used to cut and collect aquatic plants, rubbish, wood and other debris in shallow waters or swampy areas and is also used in areas that cannot be reached by floating equipment.

The amphibic weed harvester BERKY TRITON 550 AMPHI is a compact and manoeuvrable mow collector boat on land and in the water, which simultaneously cuts aquatic plants below the water surface such as the Canadian waterweed (Elodea Canadensis) with a U-double blade cutter and transports them to the hold by conveyor belt.

Furthermore, the boat can be used as a rubbish collection boat for skimming and removing rubbish.

With its air-conditioned cabin with all-round visibility, it fulfils all the characteristics expected of a mower-collection boat.

The spacious driver’s cab is fully glazed and soundproofed, and the driver’s platform can also be lowered hydraulically.

The content of the loading space is 5.5 m^3 and can then be unloaded within a few minutes using the conveyor belt.

Hire or buy our amphibious mowing collection boats for watercourse cleaning and aquatic plant removal.

  • Icon Wasserreinigung
    Care in and under water
  • Icon Ufer
    Bank and embankment maintenance
  • Icon Gewässergrund
    Care of the water bottom

ALL PROPERTIES AT A GLANCE

MerkmalEigenschaften
Article number
  • 6925
Motor
  • Stage IIIA/Stage V: 4-cylinder Perkins diesel engine, approx. 74.5 kW/100 hp
Hull
  • Steel hull with primer and top coat resistant to aggressive, atmospheric and mechanical influences.
  • Boat corners with double-walled material support as wearing edge
  • Running floor made of non-slip material
Tank volume
  • Fuel tank approx. 320 l
  • Hydraulic tank approx. 300 l
Cooling
  • Water cooling
Traction drive
  • Water: two hydraulic drive augers with start-up and weed protection, drive augers hydraulically tiltable upwards
  • Land: Crawler undercarriage, four drive tracks, undercarriage width per side 0.30 m (for gradients up to 35° in the direction of travel and 10° in the transverse direction)
Steering
  • Hydraulic swivelling of the drive screws by 60° per side
  • independent control of the chains per side
Control
  • Steering wheel, joystick and switch
  • Electric hand controls for driving on land and in the water, driving speed infinitely variable
Cabin
  • Steel cabin fully glazed, with roof hatch, hydraulically lowerable by 0.40 m
  • Clearly arranged operating elements and monitoring instruments (speed and operating hours counter, temperature display, hydraulic oil warning display, electrical position indicator with transmitter for steering, main battery switch)
  • 12 V socket splash-proof
  • Splash-proof ignition lock and displays
  • Upholstered seat with armrests
  • Air conditioning, heating, radio
Hydraulic system
  • L/S pumps for drive and crawler up to 100 l/min at 280 bar
  • Gear pump for steering and cylinder hydraulics up to 25 l/min at 180bar
  • Gear pumps for conveyor belt 1 and 2 up to 40 l/min at 180 bar
  • Gear pump for U-cutter up to 40 l/min at 80 l/min
  • Hydraulic oil: Bio-oil Water hazard class 0
  • Micro filter system
Safety and warning system
  • Automatic safety shutdown in case of overheating and low engine oil pressure
  • Acoustic signal when hydraulic oil level is too low
Dimensions
  • Hull: 6.00 m x 3.00 m x 1.20 m (LxWxH)
  • Transport: 11.50 m x 3.00 m x 3.00 m (LxWxH)
  • Draught: 1,10 m
  • Weight: approx. 9,000 kg
  • Ground Pressure: 0.67 kg/cm²
  • Cabin: 1.50 m x 1.50 m x 1.20 m
Convevor belts
  • Front conveyor belt 3.80 m long and 1.90 m wide, unloading height 2.00 m above waterline
  • Loading conveyor 4.30 m long and 1.90 m wide, loading height 0.60 m
  • Loading capacity 5.5 m³
  • made of stainless material with Polystal double rods, pce. 23 mm, ø 8 mm
Cutterbar
  • U-cutterbar with 2.30 m working width and 1.50 m working depth
  • Double-knife cutter
Speed
  • Water: up to 7 km/h forward and 5 km/h backward
  • Land: up to 3 km/h forward and 3 km/h backward
Standard equipment
  • Lockable storage box
  • Lighting and equipment according to EU regulation
  • mobile bilge pump
  • Oil change pump for engine oil
  • Tool kit
  • Fire extinguisher, First aid kit, Life belt, Life jacket
Areas of application
  • Cutting aquatic plants
  • Both sides of aquatic plants
  • Collecting and removing rubbish
  • Wood removal
