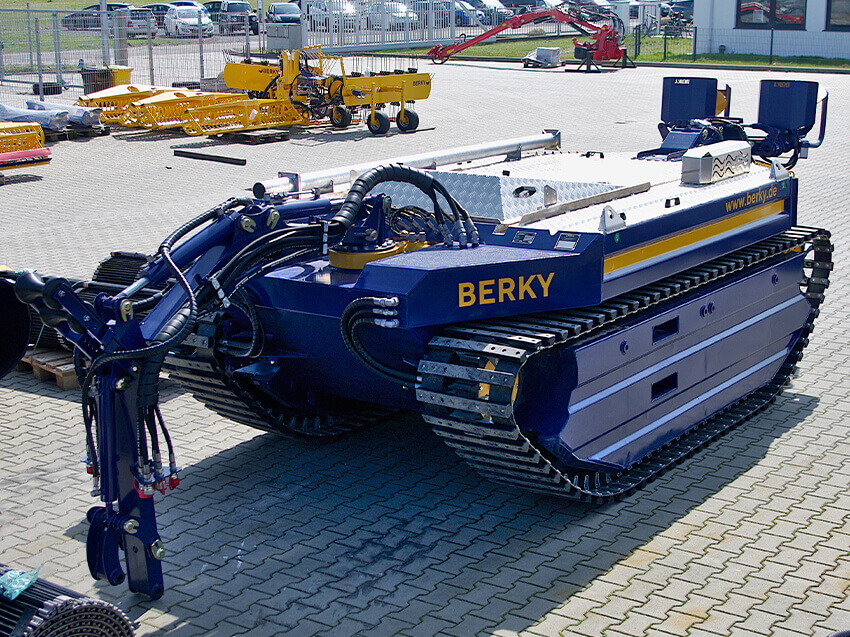

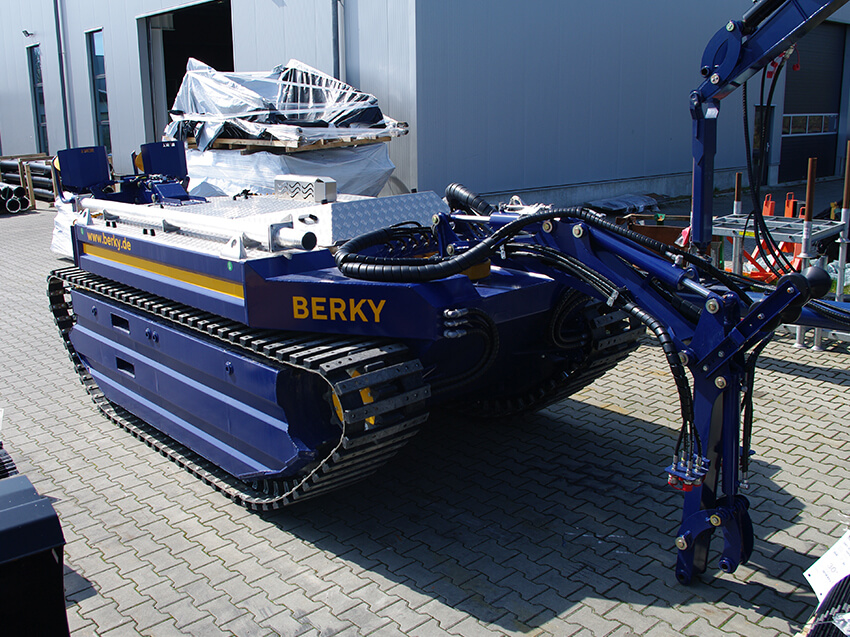

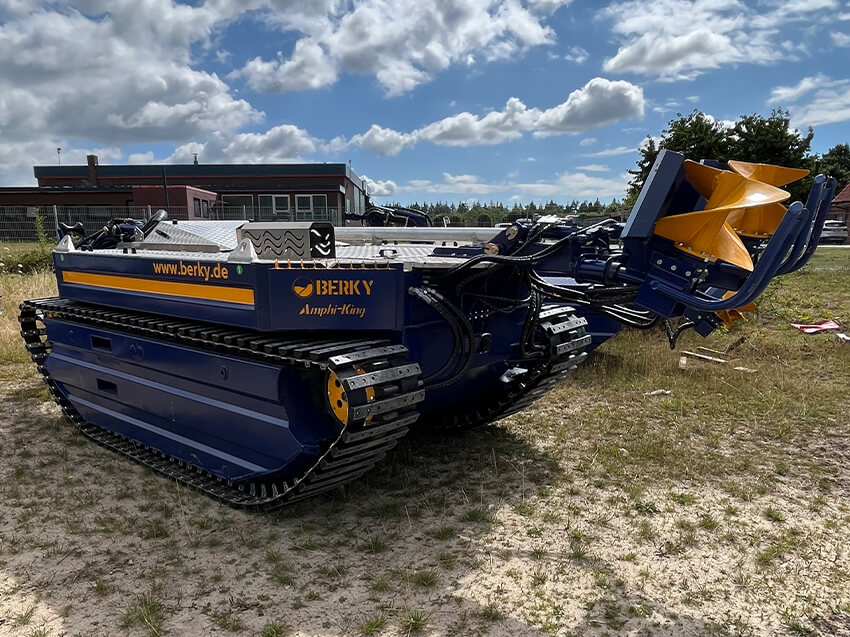

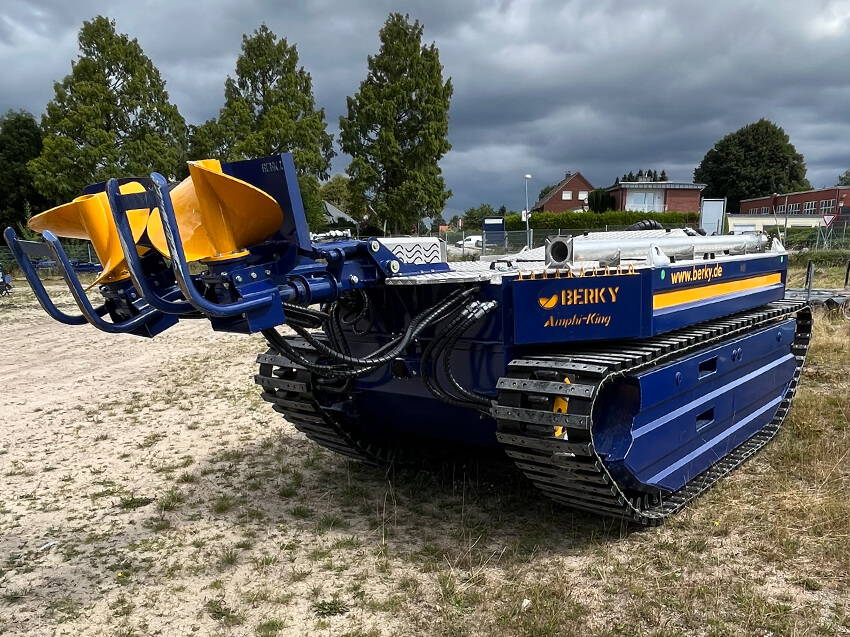

Berky NEREUS 240 Amphi

Amphibious mower boat typ 6450

Whether on land or water, the BERKY NEREUS 240 AMPHI is versatile. The BERKY NEREUS 240 AMPHI combines boat and vehicle in one machine. The manoeuvrable and compactly built machine thus not only allows work in the middle of the water, but also in the hard-to-reach marginal areas, in shallow places and in swampy areas.

Wide range of applications for effective water maintenance

The possible work applications of the amphibious mowing boat are as versatile as the areas of use. With the swivelling outrigger arm, mowing, collecting flotsam and desilting are easy tasks. Not only floating plants Lemma (duckweed) and water hyacinths are effectively removed, but also rooting plants such as waterweed or comparable plant species are removed by the mowing boat. Rent or buy our mowing boats for watercourse cleaning and removal of aquatic plants.

Matching tools:

Care in and under water
Bank and embankment maintenance
Care of the water bottom

ALL PROPERTIES AT A GLANCE

Merkmal	Eigenschaften
Artikel number	6450
Motor	Stage IIIA: 4-cylinder Kubota diesel engine, approx. 55.4 kW/75 hp Stage V: 4-cylinder Kubota diesel engine, approx. 55.4 kW/75 hp
Hull	Saltwater-resistant hull made of aluminium with primer and top coat resistant to aggressive, atmospheric and mechanical influences. Boat corners with double-walled material support as wearing edge
Tank volume	Fuel tank approx. 60 l Hydraulic tank approx. 90 l
Cooling	Water cooling for diesel engine Two separate hydraulic oil coolers
Traction drive	Water: two hydraulic drive augers with start-up and weed protection, drive augers hydraulically depth-adjustable and tiltable upwards Land: pontoon-clamped crawler track, two drive chains with two drive motors each, track width per side 0.50 m (for gradients up to 30° in the direction of travel and 10° in the transverse direction).
Steering	Hydraulic swivelling of the drive augers by 60° per side via joystick on the driver's seat Chains independently controllable via foot pedals
Control	One joystick for worm drive, travel speed infinitely variable Two joysticks for boom operation (Euro control) Two foot pedals for chain drive

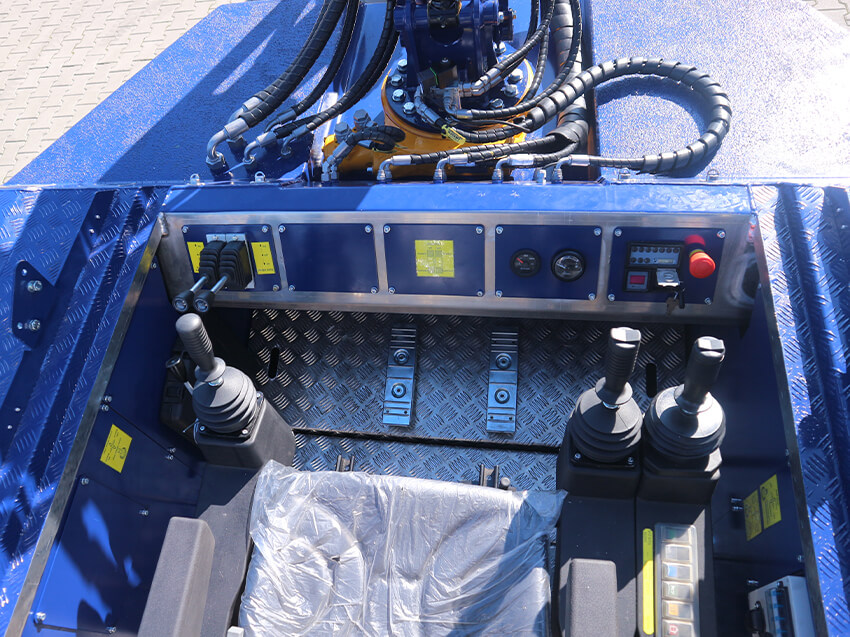

Driver's platform	Clearly arranged controls and monitoring instruments (rev counter and hour meter, temperature display, electric diesel tank indicator, hydraulic oil warning indicator, electric position indicator with transmitter for steering, main battery switch) 12 V socket splash-proof Splash-proof ignition lock and displays Upholstered seat with armrests
Hydraulic system	L/S pump for drive and large implements up to 100 l at 220 bar Gear pump for implement drive up to 40 l/min at 150 bar Gear pump for cylinder hydraulics and steering up to 25 l at 200 bar Hydraulic oil: Bio-oil Water hazard class 0
Safety and warning system	Automatic safety shutdown in case of overheating and low engine oil pressure Acoustic signal when hydraulic oil level is too low

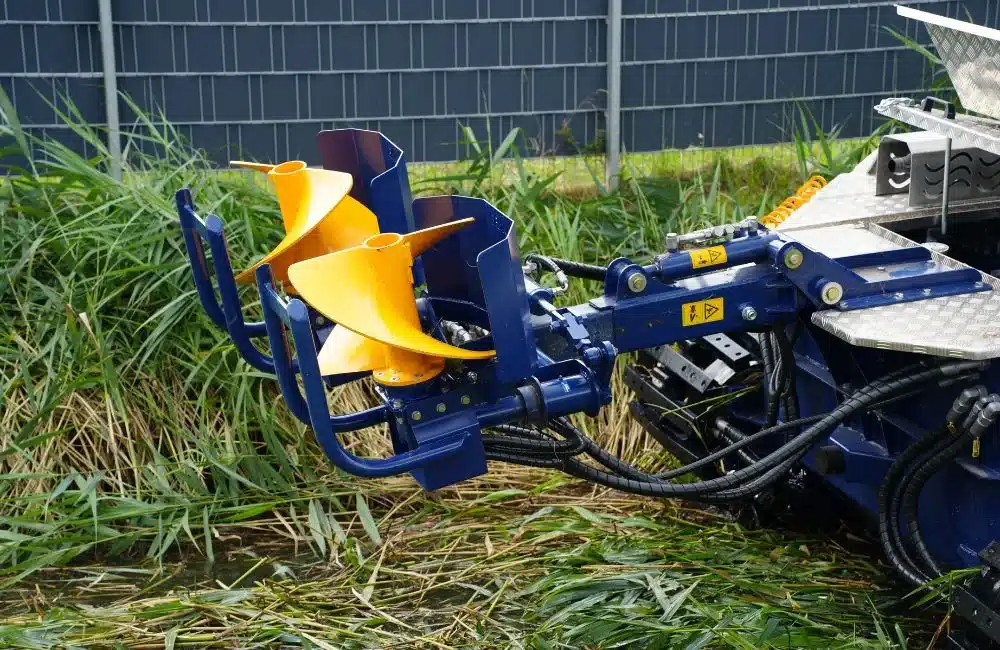

Cantilever	Two-part articulated boom mounted centrally Swivel range 270 Length approx. 2.40 m Working depth under water approx. 1.50 m with T-knife Unloading height approx. 2.00 m
Dimensons	Hull: 3.80 m x 2.40 m x 1.00 m (LxWxH) Transport: 5.42 m x 2.40 m x 1.65 m (LxWxH) Draught: 0,80 m Weight: approx. 3,100 kg Ground pressure: 0.15 kg/cm²
Speed	Water: up to 7 km/h forward and 3.5 km/h backward Land: up to 6 km/h forwards and backwards
Standard equipment	Lockable aluminium cover for the driver's platform mobile bilge pump Oil change pump for engine oil On-board tool kit, Life jacket
Scope of application	Remove and collect aquatic plants, algae and water hyacinths in rivers, lakes or canals. De-silting and dredging the bottom of the watercourse
